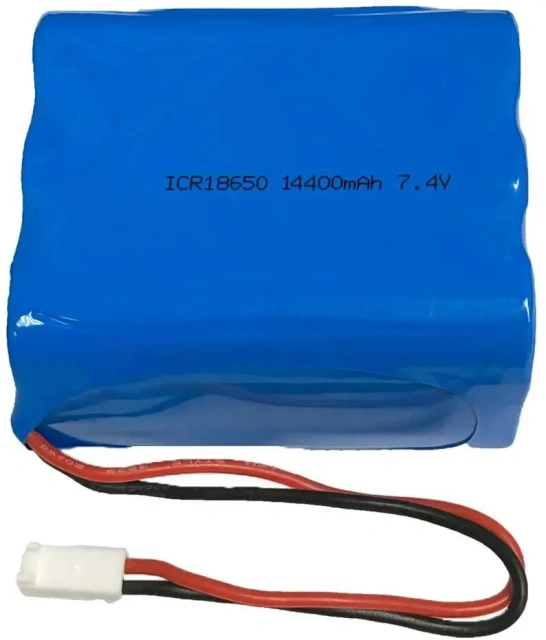

7.4V 14400mAh Lithium Ion Battery Pack – Custom Lithium Ion Battery Pack

Description

Optimized Power Solution for Survey Scanner Devices
Our 7.4V 14400mAh lithium polymer battery pack is designed specifically for professional survey scanner applications requiring extended operational endurance and consistent power output. Targeting engineers and procurement managers in geospatial and field data collection industries, this custom lithium ion battery pack supports high-load devices reliably through comprehensive system safety features. Its modular design and OEM/ODM customization services enable tailored integration matching exact scanner specifications, ensuring seamless compatibility within highly specialized scanning hardware environments.

Advanced Engineering and Measurable Performance Specifications
The battery pack utilizes premium SAMSUNG 18650 cells arranged in a robust 2S6P configuration, delivering a nominal voltage of 7.4V and a rated capacity of 14400mAh. Equipped with multi-level protection circuits—including overcharge, over-discharge, over-current, and short-circuit safeguards—this lithium polymer battery maintains safe operation across varying environmental conditions (-20°C to 55°C discharge range). The customizable overcurrent threshold (10-25A adjustable) supports workloads up to 106W, providing technical reliability vital for continuous, high-performance scanner utilization in field conditions.

Industry Integration and Application Versatility
This custom lithium ion battery pack addresses the need for a dependable energy source in scanning devices employed within survey, logistics, and inspection sectors. It enhances operational uptime by replacing less efficient power solutions and providing long cycle life for enterprise-grade scanner hardware. Its compatibility with modular scanner designs permits flexible deployment under fluctuating environmental and workload demands, fulfilling requirements for OEM manufacturers and service providers aiming to improve product longevity and system efficiency through certified, high-capacity lithium polymer battery solutions.

Key Features of Lithium Battery Pack for Scanner Survey:

Reliable & safe performance, long cycle life
Uses the most advanced chips from Japan and the United States for Protection system (PCM/BMS)
Cell materials available include LiCoO2 (lithium cobalt oxide), LiMn2O4 (lithium manganese oxide), Li-Ni-Co-Mn-O (ternary material), and LiFePO4 (lithium iron phosphate)
Using Sony, Sanyo, Panasonic, Samsung, LG brand cells or other competitive cells ensures consistency, stability, and safety of the battery pack
Multiple parallel and series combinations and intelligent modular battery designs are possible
We can provide OEM/ODM battery pack services for your scanner needs

Specification of Lithium Battery Pack for Scanner Survey:
Type	Parameters
Nominal voltage	7.4V
Rated capacity	14400mAh (0.2C discharge)
Continuous working current	3-20A
Overcurrent protection value	10-25.0A (adjustable)
Suitable device power	≤106W
Overcharge protection voltage	4.25 ± 0.025V/Cell (optional)
Discharge protection voltage	2.50 ± 0.025V/Cell (optional)
Charge mode	Constant current, constant voltage
Charge voltage	8.45-8.55V
Charge current	2.88-7.2A
Charge temperature	0~45℃、45~85%RH
Discharge temperature	-20~55℃、45~85%RH
Storage temperature and humidity range	Short term (Over 1 month): -20~+55℃、45~85%RH
	Medium term (Over 3 months):-20~+45℃、45~85%RH
	Long term (Within 1 year): -5~+20℃、45~85%RH
Dimensions	Refer to sample
Weight	>600g

Use Scenarios

Extended Survey Operations in Geospatial Mapping
In the demanding operational environment of geospatial field surveys, handheld scanner devices necessitate a high-capacity, stable power source to maintain continuous data capture. This lithium polymer battery pack delivers extended runtime and reliable voltage levels critical for advanced scanning functions. It integrates directly with portable scanner systems, providing tailored power solutions via OEM customization that comply with strict safety and performance standards. This capability supports uninterrupted surveying workflows in remote locations, ensuring accuracy and operational efficiency.

Role in Industrial Inspection and Logistics
This custom lithium ion battery pack serves as a power backbone for scanner units employed in industrial inspection and logistics environments, where consistent device uptime and rapid scan cycles are non-negotiable. Its built-in protection features prevent failure in harsh operational conditions while supplying the necessary current to support high-demand scanning hardware. Integrated into modular scanner designs, the pack enhances system robustness and reliability, facilitating accurate inventory management and quality control processes that rely on sustained scanner performance.

FAQ

What materials and cells are used in this 7.4V 14400mAh battery pack?
This battery pack uses premium SAMSUNG 18650 lithium cells (3.7V, 2400mAh each) arranged in a 2S6P configuration. The high-quality cells ensure stable power output, durability, and long cycle life, making it a reliable lithium battery pack suitable for scanner survey applications.

Can Weijiang provide customized battery packs for specific scanner models?
Yes, Weijiang offers OEM/ODM services to tailor custom lithium ion battery pack solutions that meet exact device specifications. Customization ensures optimal integration, safety features, and electrical parameters fit your scanner’s requirements.

What are the recommended operational temperature ranges for this lithium battery?
The battery is designed for charging within 0~45℃ and discharging from -20~55℃, both with relative humidity of 45~85%. These parameters support stable performance in various environmental conditions commonly encountered in field scanning operations.

How is the battery pack integrated into scanner systems, and what power specifications are supported?
The battery supports continuous working currents between 3-20A and powers devices up to 106W. Its modular design allows series and parallel configurations, ideal for scanners requiring a stable 7.4V supply backed by a robust lithium polymer battery protection system.
